| Quantity: | |
|---|---|
TKM-218
TECHKNIT

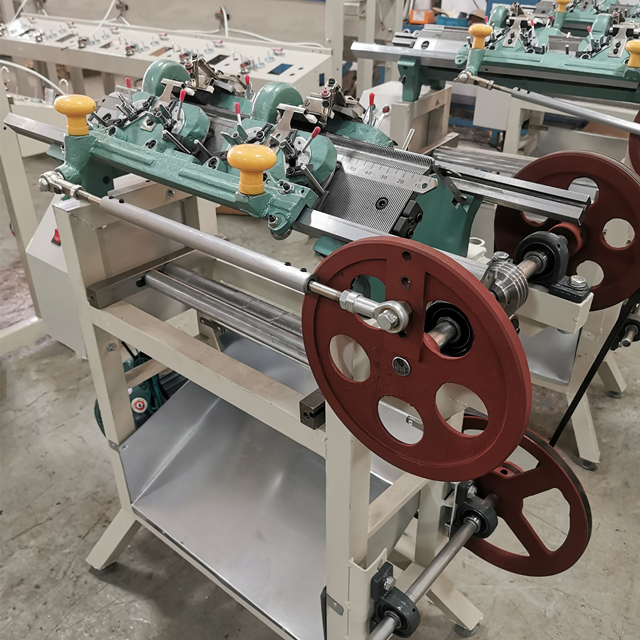

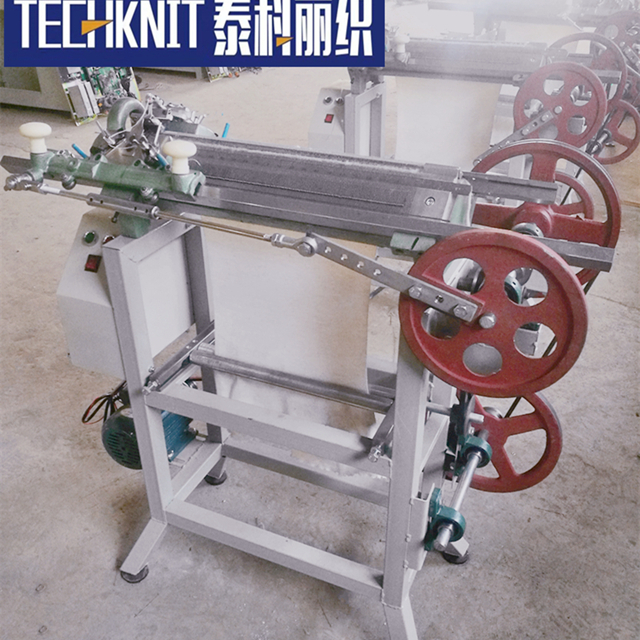

This flat knitting machine can knit all kinds of taps with 12-18 Needles
The machine is powered with Motor
Equip with Take down roller and non-stop
Gauge: 5g/7g/10g/12g/14g as order
Needle bed size:18 inch
Carriage: double knitting carriage
Feeder: One feeder

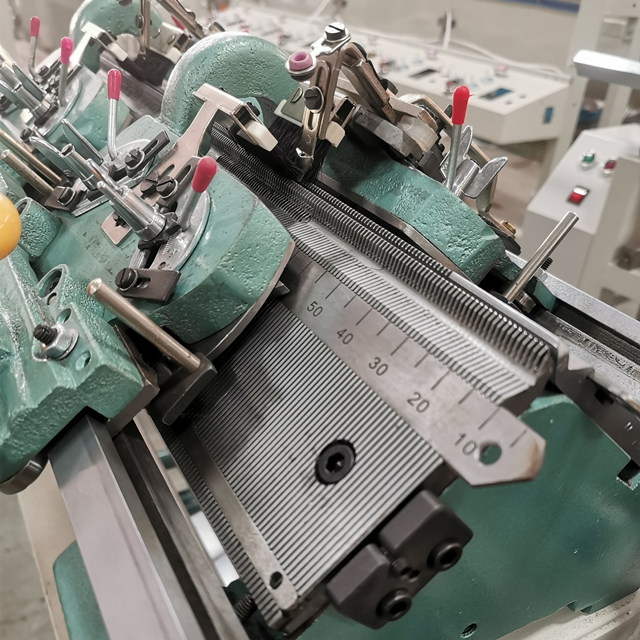

NEEDLE BED: | Fitted on cast iron stand with two inclined needle beds fitted with needles security springs |
WIDTH | 36" 42" inch |
GUAGE | 5G/7G/9G/10G/12G/14G/16G/18G |
RACKING | Racking is hand operated by a lever of the front needle bed. |
CARRIAGE | Low bow carriage running on 6 ball bearings operated by handle fixed on the bottom of the stand. |
CAM BOXES | Single system for wire needles with front side jacquard cams, high & low butt needles can be used in the machine on special order. |
Supply capacity: 350 Sets per Month
Easy Operating 2 feeders
Packing for easy Transport
Machine stand Packing
Knitting needles
Delivery with good wills
No | Description | Quantity |
1 | Set up comb(small and larger) | 1+1 |
2 | Tension regulator set | 4 pieces |
3 | Tension regulator | 4 pcs |
4 | Narrowing comb | 1 set (total 8 pcs) |
5 | Wrench | 2/3/5 mm total 3 pcs |
6 | Transfer comb | 1 set |
7 | Hackle | 1 pcs |
8 | Ball weight hook | 2 piece |
9 | Needle selector (1:1 and 1:2) | 1 set |
10 | Needle lifter | 1 |
11 | Needle slide hook | 1 piece |
12 | Weight | 2 set |
13 | brush | 1 |
14 | Flat knitting machine complete set | 1 set |
15 | Machine stand | 1 complete set |
School Sweater
Adult Knitwears
