TK2-132SS
TECHKNIT

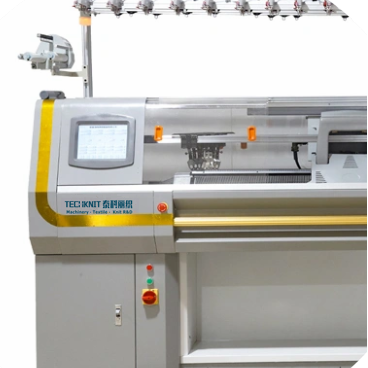

Techknit 132SS is a fully computerized jacquard flat knitting machine with double knitting system operation equipped with single carriage. All Parameters are fully computerized turned as required. Machine is also well equipped with auto-stop function by error, detection devices and unique sinker system to ensure more flexible knitting function. All controlled by needle selector, the machine can execute full-function jacquard and full-fashion structure.
1 Stitch System: the design of the carriage is engineered to be built upon 4 angle supporting design, stitch quality is controlled independently by stepping motor attached with stitch cam within carriage
2 Sinker System: The sinker system located in Non-knitting area with open sinker system to allow special knitting structure such as pocket and beetle -structure
3 Precision power driven system: A/C Servo motor for main carriage and bed racking make knitting fine stitch and high efficency
4 CAD design system: All knitting parameters controlling stitch ,speed, tension and other knitting characteristics can be entered into Cad System for Programming
5 Operation Design: Machine is equipped with unique touch panel operation with fast key board , all needful parameters are clearly displayed in the panel screen and adjustable whenever required
Equipped and functional with:
1-1 Compact carriage with knitting/rest/tuck three way knitting, with insert and sinker
1-2 Single side powered rubber roll
1-3 Double sides yarn tension feeder
1-4 Integrated Control system with latest version
1-5 Found heavy machine stand
1-6 High performance Needle
1-7 Fast carriage Return
1-8 2*4 yarn feeder
1-9 Double Racking , much increase efficiency of machine
1-10 Fully functional and fully automatic to knit sweater easy
S/n | Model : TK2-132SS | |
1 | Gauge | 5/7multi-gauge, 5g,7g,8g,10g,12g ,14g,16G |
2 | Knitting Bed | 52 inch |
3 | Side Feeder | 1 pcs on each side |
4 | Head&system | Single carriage with double system (52”machine) |
5 | Knitting function | Transfer / knitting/miss/tuck three way knitting technology |
6 | Racking | Servo motor control double bed racking with fine adjustable |
7 | Detect Alarm and protection | Safety alarm detect device such as needle breakage/shock bed/yarn breakage/electric error ,yarn knots, floating, end of knitting, fail of racking Etc. |
8 | Transfer cam | Compact designed , transfer from front to rear and rear to front |
9 | Stitch | Controlled by stepping motor, ranges for all type yarn and sweater |
10 | Sinker | Controlled by stepping motor, adjustable to different knitwear |
11 | Yarn feeder | 2*4 yarn feeder on 4 guide rails,shift able on any needle position |
12 | Roller | Rubber roller to save connecting yarn |
13 | Data input | USB driver for Design input, software update, machine & design parameter copy , |
14 | Waste yarn free comb device | Power by Servo motor, with steady force With (option) |
15 | Scissors and clips | Equipped in both sides(option) |
16 | Monitor menu | Color monitor with knitting information displayed |
17 | Language Version | English & Chinese |
18 | Power | Single phase 220V 50HZ |
19 | Measurement | 52 inch machine L2850*W1050*W1750mm (machine size) |
Fashion Knits
Knit hats
